Disk encryption (LUKS)

The Disk encryption policy type (technical name DiskEncryption, shown as LUKS) manages LUKS2 full-disk encryption across your fleet. It checks that the volumes in scope are encrypted, enrolls automatic unlocking through the TPM 2.0 chip and/or Tang network servers, and escrows a per-volume recovery key on the Bor server. The help desk can reveal that key from the Disk Encryption page, with its own permission, re-authentication and a full audit trail.

This page covers the server setup (escrow key, Tang servers, permissions), the policy editor, what the agent does on the endpoint, adoption of existing machines, the help-desk recovery procedure, key rotation and retention, and troubleshooting.

Bor never converts a disk

Requiring encryption does not encrypt anything. An unencrypted volume is reported as non-compliant; the remedy is reinstalling with encryption (see Provision new machines).

Concepts

LUKS2 encrypts a volume with a random volume key. Up to 32 keyslots each hold a copy of that key, encrypted under a different credential; any one keyslot unlocks the disk. Tokens in the LUKS2 header tell the boot tooling how a keyslot is unlocked. Each keyslot that Bor manages is called a protector:

Protector	Unlocks when	Managed with
TPM 2.0	The measured boot state (PCRs) matches the enrollment, i.e. firmware, Secure Boot configuration and boot chain are unchanged	systemd-cryptenroll (dracut-based systems)
Tang	The machine can reach the configured Tang server(s) at boot	clevis luks bind with a pinned, admin-confirmed signing key
Recovery key	Someone types the recovery key at the boot prompt	Generated by the agent, escrowed on the Bor server
User passphrase	The user types it	Not managed; left in place

A typical managed system volume looks like this:

LUKS2 volume luks-3f2a9c1e-...  (backs /)
  slot 0  systemd-tpm2      TPM 2.0, PCR 7     unattended boot on an intact boot chain
  slot 1  clevis (tang)     tang1.example.com  unattended boot on the office network
  slot 2  systemd-recovery  Bor recovery key   typed at the prompt when both fail
  slot 3  password          user passphrase    untouched by Bor

Three design rules matter for operators:

1. The Bor server is never in the boot path. Unlocking at boot is done by the initramfs (TPM, Clevis/Tang, or a typed key). A Bor server outage never stops a machine from booting.
2. Bor orchestrates, standard tools do the cryptography. The agent runs cryptsetup, systemd-cryptenroll and clevis with fixed arguments; secrets are passed on stdin or a pipe, never on a command line or in a file. The only secret Bor generates is the recovery key, in the same format as systemd-cryptenroll --recovery-key.
3. Escrow first. A new recovery key is stored on the server before its keyslot is created, and an old keyslot is wiped only after the server has confirmed the new one. There is never a Bor recovery slot whose key the server does not hold.

Endpoint prerequisites

Component	Needed for	Notes
cryptsetup (2.4 or later)	Everything	Without it the policy reports Error: cryptsetup is not installed on this node. The bor-agent package recommends it.
systemd-cryptenroll	TPM2 protector	Only on dracut-based systems (initramfs generator detected as dracut). Elsewhere the TPM2 item is inapplicable.
tpm2-tools and the dracut tpm2-tss module	TPM2 unlocking at boot	Checked by the initramfs verification.
clevis with clevis-luks and clevis-dracut	Tang protector	Missing Clevis under a Tang policy is non-compliant (a required control is absent), not inapplicable.
lsinitrd (dracut)	Initramfs verification	Used to inspect the current initramfs.
systemd-ask-password	bor-agent luks adopt	Used to read the passphrase.

The bor-agent package suggests clevis-luks, clevis-dracut and tpm2-tools. On systems that do not use dracut (for example Debian or Ubuntu with initramfs-tools), recovery-key escrow works, while TPM2 and the initramfs checks report inapplicable.

Agent configuration

Optional keys in /etc/bor/config.yaml under disk_encryption::

Key	Default	Purpose
state_file	/var/lib/bor/agent/luks-state.json	Crash-recovery progress of rotations. Never contains keys.
bootstrap_dir	/etc/bor/luks-bootstrap	One-time provisioning credentials (<luks-uuid>.key).
run_dir	/run/bor/luks	Root-only tmpfs work directory (Clevis temporary files, lock shared with bor-agent luks adopt).
cryptsetup	cryptsetup	Binary, resolved through PATH.
cryptenroll	systemd-cryptenroll	Binary, resolved through PATH.
clevis	clevis	Binary, resolved through PATH.

Server setup

1. Configure the escrow key (KEK)

Escrowed recovery keys are envelope-encrypted: each record has its own AES-256-GCM data key, which is wrapped by a key-encryption key (KEK) read from a file outside the database. Without a KEK, escrow refuses to operate and the policy editor shows Recovery-key escrow is not configured on the server: set BOR_ESCROW_KEK_FILE.

1. Create a KEK of exactly 32 random bytes, readable only by the bor user:

   sudo sh -c 'head -c 32 /dev/urandom > /etc/bor/escrow.kek'
   sudo chown bor:bor /etc/bor/escrow.kek
   sudo chmod 0600 /etc/bor/escrow.kek


   The file may hold the 32 bytes raw or base64-encoded. The server refuses to start if the file is group- or world-readable or has the wrong size.

2. Point the server at it, in /etc/bor/server.yaml:

   disk_encryption:
     escrow_kek_file: /etc/bor/escrow.kek


   or in /etc/bor/server.env as BOR_ESCROW_KEK_FILE=/etc/bor/escrow.kek.

3. Restart the server and check the log:

   sudo systemctl restart bor-server
   sudo journalctl -u bor-server | grep -i escrow


   It logs Recovery-key escrow enabled (KEK "file-1" from /etc/bor/escrow.kek).

Back up the KEK separately from the database

A database backup without the KEK file cannot decrypt any recovery key, and the KEK alone is useless without the database. Back them up to different places, and never lose the KEK: without it, every escrowed key is unrecoverable. See Backup.

Server settings

Environment variable	YAML key under disk_encryption:	Default	Purpose
BOR_ESCROW_KEK_FILE	escrow_kek_file	(escrow disabled)	Current KEK file.
BOR_ESCROW_KEK_ID	escrow_kek_id	file-1	Label stored on records wrapped with the current KEK.
BOR_ESCROW_KEK_PREVIOUS_FILES	escrow_kek_previous_files	(none)	Old KEKs as comma-separated id=path entries, kept readable during KEK rotation.
BOR_ESCROW_REQUIRE_MFA	require_mfa_for_reveal	true	Require a second factor when revealing a key.
BOR_ESCROW_RETIRED_RETENTION_DAYS	retired_retention_days	30	How long rotated-away keys stay revealable.
BOR_ESCROW_ORPHAN_RETENTION_DAYS	orphan_retention_days	90	How long keys of a deleted node are kept.

Rotate the KEK

1. Create a new KEK file as above, for example /etc/bor/escrow-2.kek.

2. Set it as the current KEK with a new ID, and list the old one as previous:

   disk_encryption:
     escrow_kek_file: /etc/bor/escrow-2.kek
     escrow_kek_id: file-2
     escrow_kek_previous_files:
       - file-1=/etc/bor/escrow.kek


3. Restart the server. The hourly maintenance job rewraps every record's data key under the new KEK (recovery keys themselves are not re-encrypted).

4. Once all records are rewrapped, remove the previous entry and restart again.

2. Register Tang servers (optional)

Only needed for the Tang protector. Open Settings -> Tang Servers and click Add Tang server:

1. Enter a Name and the URL (for example http://tang1.example.com) and click Probe. Bor fetches the server's advertisement and lists its Signing keys (thumbprints).
2. On the Tang host, run tang-show-keys and compare the output with the thumbprints shown. Check only the keys that match.
3. Click Add server.

Agents bind only to keys an administrator confirmed; Bor never lets Clevis skip thumbprint verification. The server re-checks every Tang advertisement every 6 hours. When a Tang server advertises a new key, its status becomes New key advertised; open it with Confirm new key..., compare with tang-show-keys, and confirm. A server referenced by a policy cannot be deleted.

Tang key rotation: rotate the keys on the Tang host (keeping the old keys available), confirm the new thumbprint in Bor, and update the policies that use the server. Agents bind to the new key, verify the binding and only then remove the stale one. The tab shows how many volumes are bound to each key; delete the old key on the Tang host only when its count reaches zero.

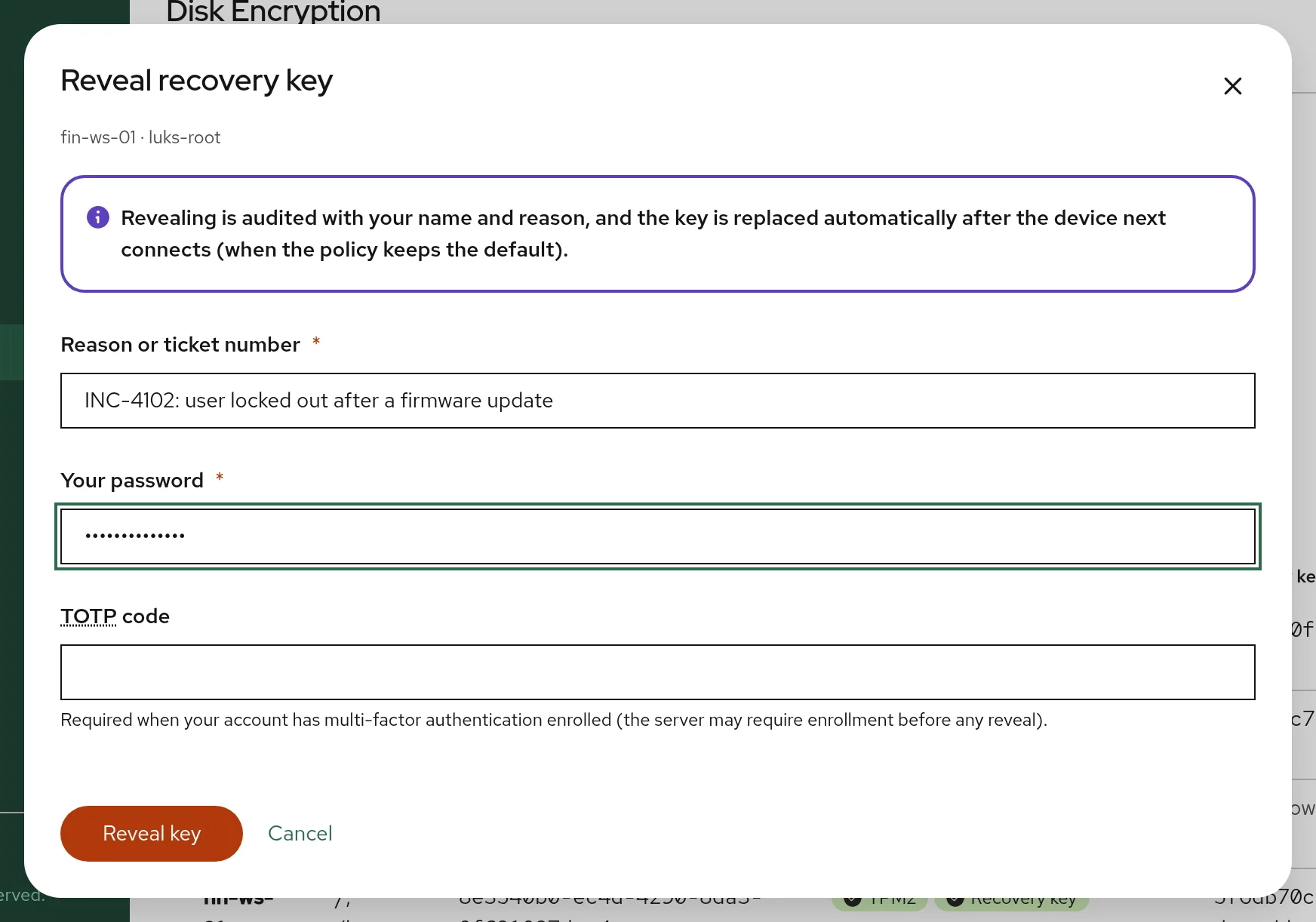

3. Review who may reveal keys

Permission	Allows	Granted by default to
disk_encryption:view	The Disk Encryption page and key metadata	Every role that has node:view
disk_encryption:reveal	Revealing a recovery key	Super Admin only
disk_encryption:rotate	Rotate now	Super Admin only
tang_server:view, create, edit, delete	Settings -> Tang Servers	Roles with settings:manage

Grant reveal to a help-desk role deliberately (see Users and roles and Permissions). Keep BOR_ESCROW_REQUIRE_MFA=true so revealing always needs a second factor (see MFA).

Create a disk encryption policy

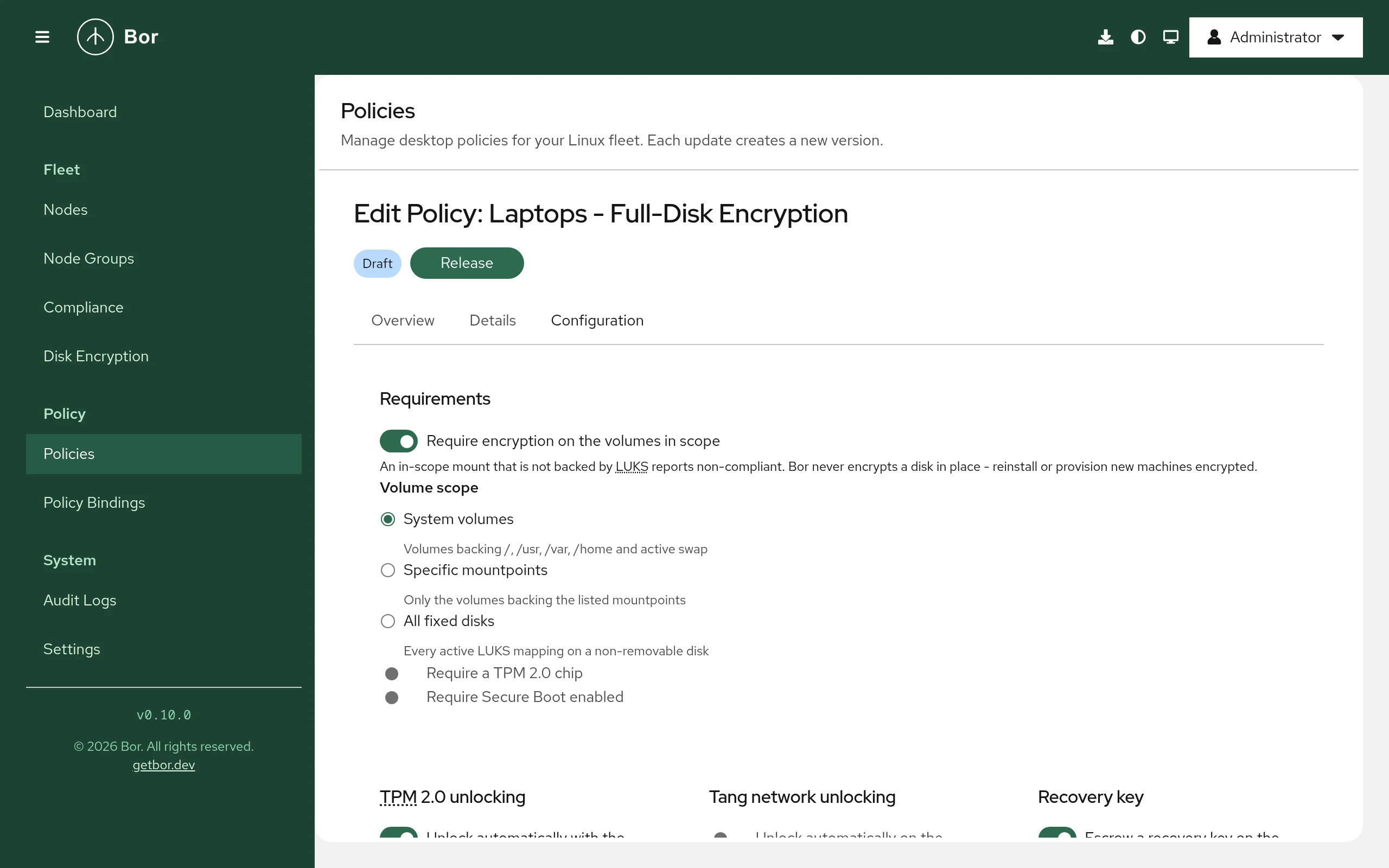

Open Policies, click Create a policy and choose Disk encryption. New policies start with: require encryption, system volumes, TPM2 on with the Secure Boot profile and auto-reseal, recovery-key escrow on with 180-day rotation, replace after reveal, server-assisted rotation, and Verify only initramfs handling. The editor shows a Resulting keyslot layout preview.

Requirements

Setting	Meaning
Require encryption on the volumes in scope	Every in-scope mount not backed by encryption is non-compliant.
Volume scope	System volumes (volumes backing /, /usr, /var, /home and active swap), Specific mountpoints (list them under Mountpoints, up to 32 absolute paths), or All fixed disks (every active LUKS mapping on a non-removable disk).
Require a TPM 2.0 chip	Node-level requirement.
Require Secure Boot enabled	Node-level requirement, read from efivars.
Minimum volume key size (bits, 0 = default 512)	Compliance floor for the volume key. 512 bits corresponds to AES-256-XTS.

The allowed cipher list (allowedCiphers, default aes-xts-plain64) can be set in the policy JSON. Swap on plain dm-crypt with a random key counts as encrypted. LUKS1 volumes are non-compliant until converted offline with cryptsetup convert --type luks2.

TPM2 - unattended boot on an intact chain

Unlock automatically with the TPM enrolls a TPM2 keyslot with systemd-cryptenroll bound to a PCR profile:

PCRs option	PCRs	Behavior
Secure Boot (PCR 7) (default)	7	Unseals while the Secure Boot configuration is unchanged; survives ordinary kernel and OS updates.
Secure Boot + shim (PCR 7 + 14)	7, 14	Also bound to the shim/MOK certificates.
Custom PCR list	Your list, for example 7, 14	PCRs 0 and 2 change with firmware updates and need Allow firmware PCRs (0 and 2).

Re-enroll automatically after PCR changes (on by default): when the TPM no longer unseals (for example after a firmware or Secure Boot update), the machine falls back to Tang or the recovery key at the next boot, and once it is up the agent re-enrolls the TPM, at most once per boot (audited as luks.tpm_reseal).

TPM enrollments owned by another full-disk-encryption stack (snapd, sdbootutil, systemd-pcrlock or signed-PCR setups) are detected and reported inapplicable as TPM enrollment managed by ...; Bor never competes with them.

Tang network unlocking

Unlock automatically on the corporate network binds the volume with Clevis to the Servers you pick from the registry (1 to 4). Their confirmed thumbprints are copied into the policy, so the policy is self-contained and exportable. With several servers, Servers required to unlock (threshold) sets how many must be reachable at boot.

Tang trusts the network

A stolen device still unlocks while it can reach a Tang server. Keep Tang servers reachable only from networks where unattended unlocking is acceptable.

Recovery key - escrowed, typed when all else fails

Setting	Default	Meaning
Escrow a recovery key on the Bor server	on	The agent generates a recovery key, escrows it, then adds the keyslot.
Rotate every (days, 0 = never)	180	0, or 30 to 730.
Replace the key after every reveal	on	A revealed key is rotated as soon as the node next connects.
Allow server-assisted rotation	on	See below.

Server-assisted rotation: to add a new keyslot the agent needs an existing credential. If it has no other one, the server may release the current recovery key to the node that owns the volume, but only while a rotation is pending for it, at most once per 24 hours, and only to be replaced in the same run. A release that is not followed by a confirmed rotation within 15 minutes raises a recoverykey.release_unconfirmed audit event. Turn this off if keys must never leave the server except through a human reveal.

Advanced

• Initramfs handling:
  • Verify only (default): the agent checks that the initramfs can unlock with the configured protectors and reports what is missing. It never modifies the system.
  • Manage (dracut): the agent writes /etc/dracut.conf.d/90-bor-disk-encryption.conf (adds the tpm2-tss dracut module for TPM2, and hostonly_cmdline="yes" when Tang protects a system volume so rd.neednet=1 is added), appends tpm2-device=auto to the managed volumes' /etc/crypttab entries, and rebuilds the initramfs with dracut -f --regenerate-all (at most once every 10 minutes). The editor warns: Manage mode rebuilds the initramfs on every node this policy reaches. Roll it out to a pilot group first.
• Adopt matching existing enrollments (on by default): existing TPM2 and Tang keyslots that already match the policy count as managed; mismatching ones are replaced only after the new slot verifies. Keyslots of unknown types are never touched.

The user passphrase keyslot is always kept.

Setting reference

Policy content is the DiskEncryptionPolicy message as JSON.

Field	Description
requireEncryption, requireTpm2, requireSecureBoot	Requirements.
volumeScope	LUKS_VOLUME_SCOPE_SYSTEM (default), LUKS_VOLUME_SCOPE_MOUNTPOINTS, LUKS_VOLUME_SCOPE_ALL_FIXED.
mountpoints	Only with the mountpoints scope.
minVolumeKeyBits	0 = 512; otherwise 128-4096.
allowedCiphers	Empty = ["aes-xts-plain64"].
tpm2	enabled, pcrProfile (TPM_PCR_PROFILE_SECURE_BOOT, TPM_PCR_PROFILE_SECURE_BOOT_SHIM, TPM_PCR_PROFILE_CUSTOM), pcrs, autoReseal (default true), allowFirmwarePcrs.
tang	enabled, servers[] (url, thumbprint, acceptedThumbprints), threshold (0 = 1).
recovery	escrow, rotationIntervalDays (unset = 180, 0 = never), rotateAfterReveal (default true), serverAssistedRotation (default true).
initramfsMode	INITRAMFS_MODE_VERIFY_ONLY (default) or INITRAMFS_MODE_MANAGE.
adoptExisting	Default true.

The schema also contains fields reserved for later releases (tpm2.backend Clevis, tpm2.withPin, tang.borResponder, tang.requireTpm2Too, passphraseMode remove). The server rejects or the agent reports them as not available; do not rely on them.

A policy must require encryption or enable at least one protector. Every Tang server needs a confirmed thumbprint.

Example: laptops - TPM2 plus escrowed recovery key

{
  "requireEncryption": true,
  "volumeScope": "LUKS_VOLUME_SCOPE_SYSTEM",
  "requireSecureBoot": true,
  "tpm2": { "enabled": true, "pcrProfile": "TPM_PCR_PROFILE_SECURE_BOOT", "autoReseal": true },
  "recovery": { "escrow": true, "rotationIntervalDays": 180, "rotateAfterReveal": true, "serverAssistedRotation": true },
  "initramfsMode": "INITRAMFS_MODE_VERIFY_ONLY"
}

Example: office desktops - Tang on the office network

{
  "requireEncryption": true,
  "tang": {
    "enabled": true,
    "servers": [
      { "url": "http://tang1.example.com", "thumbprint": "<43-character thumbprint confirmed in Settings>" },
      { "url": "http://tang2.example.com", "thumbprint": "<43-character thumbprint confirmed in Settings>" }
    ],
    "threshold": 1
  },
  "recovery": { "escrow": true },
  "initramfsMode": "INITRAMFS_MODE_MANAGE"
}

In practice, pick the servers in the editor so the thumbprints are copied for you.

Example: compliance only - report encryption, change nothing

{
  "requireEncryption": true,
  "volumeScope": "LUKS_VOLUME_SCOPE_ALL_FIXED",
  "minVolumeKeyBits": 512,
  "allowedCiphers": ["aes-xts-plain64"]
}

No protectors are enrolled and no keys are escrowed; nodes report whether their fixed disks are encrypted with AES-256-XTS.

Merge behavior

A node has one effective disk encryption configuration. When several policies are bound:

• requireEncryption, requireTpm2, requireSecureBoot and recovery.escrow are OR-ed.
• recovery.rotationIntervalDays takes the smallest non-zero value.
• Every other setting comes from the highest-priority policy that sets it.
• Tang server lists are not merged: the highest-priority list wins entirely, because a union would silently widen who can unlock the disk.

How the agent applies the policy

Each sync has two phases:

1. Inventory (read-only). The agent discovers dm-crypt volumes from the mount table, swap and sysfs (through LVM and MD layers), reads each LUKS2 header with cryptsetup luksDump --dump-json-metadata, classifies every keyslot, collects platform facts (TPM presence, Secure Boot state, initramfs generator, tool versions) and reports them to the server. The response carries pending tasks, such as a requested rotation.
2. Enforcement. For each in-scope volume: find an unlock credential, escrow or rotate the recovery key, enroll or re-seal TPM2, reconcile Tang bindings (bind new, verify, remove stale), retire a used bootstrap slot, handle the initramfs, then re-read the headers and report the final state and compliance.

While a policy is bound, the agent re-reads the headers every 15 minutes (so server-side drift detection stays current) and runs a full sync every 6 hours. A Rotate now request reaches a connected agent immediately.

Escrow-first rotation

Every escrow, initial or rotation, follows the same sequence. Progress (never key material) is saved in the state file so a crash resumes cleanly.

agent: generate a new 256-bit recovery key K (memory only)
agent -> server: escrow K                      server stores it as PENDING
agent: cryptsetup luksAddKey (existing credential on stdin, K on a pipe) -> slot N
agent: import the systemd-recovery token, verify slot N opens with K
agent -> server: confirm (slot N, fingerprint)  PENDING -> ACTIVE, old ACTIVE -> SUPERSEDED
agent: wipe the old Bor recovery slot, unlocking with K
agent -> server: next inventory                 superseded key retired once its slot is gone

A pending key that never gets a slot expires on the server after 24 hours.

Drift and clone detection

Every keyslot has a fingerprint derived from the volume UUID, slot index and the slot's random salt. The server compares the fingerprint of each active key with every inventory report. If it disappears (someone re-keyed the slot, or restored an old header), the escrowed key no longer opens the disk: the server raises a luks.drift audit event and schedules a rotation. Two nodes reporting the same LUKS UUID (a cloned golden image, sharing one volume key) raise luks.clone_suspected and are flagged in the UI; the only real fix is re-encrypting one machine.

Adopt existing machines

Adding a keyslot requires an existing credential. The agent tries, in order:

1. an existing TPM2 enrollment that unseals in the current PCR state;
2. an existing Clevis/Tang binding (existing NBDE fleets adopt with no interaction);
3. a bootstrap key file /etc/bor/luks-bootstrap/<luks-uuid>.key;
4. server-assisted rotation (only when a key was escrowed before and a rotation is pending);
5. an administrator running bor-agent luks adopt on the machine.

Until one works, the volume reports luks:adoption as non-compliant (adoption required - no unlock credential).

Interactive adoption

On the machine, as root:

sudo bor-agent luks adopt
# or only one volume (device path, LUKS UUID or mapping name):
sudo bor-agent luks adopt --device /dev/nvme0n1p3

The agent must be enrolled. It asks once for the current LUKS passphrase (through systemd-ask-password), checks which volumes it opens, escrows a recovery key for each and adds the recovery keyslot. The passphrase slot stays in place. The running daemon reports compliance on its next sync.

Provision new machines

The preferred path for new installs: let the installer encrypt with a random per-host bootstrap passphrase and place it in the installed system as /etc/bor/luks-bootstrap/<luks-uuid>.key (mode 0600, owned by root; a trailing newline is ignored). Kickstart example:

%pre
PASS=$(head -c 18 /dev/urandom | base64)
echo "part / --fstype=xfs --encrypted --luksversion=luks2 --passphrase=${PASS}" > /tmp/part-include
echo "${PASS}" > /tmp/bootstrap.key
%end

%include /tmp/part-include

%post --nochroot
UUID=$(blkid -s UUID -o value /dev/sda3)   # the LUKS container
install -D -m 0600 /tmp/bootstrap.key "/mnt/sysimage/etc/bor/luks-bootstrap/${UUID}.key"
%end

On its first sync with a bound policy, the agent escrows a recovery key, enrolls the configured protectors, wipes the bootstrap keyslot and deletes the file. The agent refuses a bootstrap file that is group- or world-readable. The bootstrap slot stays (reported in luks:bootstrap) until a recovery key is escrowed.

Recover a machine (help desk)

1. The user reads the volume identifier from the boot prompt (on Fedora/RHEL the mapping name is luks-<UUID>).
2. Open Fleet -> Disk Encryption and search by Hostname, LUKS UUID, key ID or mapping name.
3. In the volume's actions, choose Show recovery key....
4. Enter a Reason or ticket number (stored in the audit event), then re-authenticate: Your password, plus your TOTP code when your account has a second factor enrolled. Click Reveal key. This step-up yields a single-use token valid for 5 minutes; a logged-in browser session alone is not enough.
5. Read the key to the user. It is hidden again after two minutes.
6. When the machine next connects, the key is rotated automatically (with the default Replace the key after every reveal), so a key that was spoken aloud does not stay valid.

The same actions are available in the Disk encryption section of a node's details on the Nodes page. Rotate now requests an immediate rotation.

With BOR_ESCROW_REQUIRE_MFA=true (default), a user without an enrolled second factor cannot reveal keys. The reveal response is sent with Cache-Control: no-store.

Recovery-key lifecycle and retention

stateDiagram-v2
    direction TB
    state "expired<br/>(key material wiped immediately)" as expired
    [*] --> pending: key escrowed
    pending --> active: key slot confirmed
    pending --> expired: no key slot within 24 h
    active --> superseded: rotation
    superseded --> retired: key slot removed
    retired --> destroyed: retention period ends
    expired --> [*]
    destroyed --> [*]

Rotations are triggered by the policy interval, a reveal, Rotate now, drift detection, or a server-assisted release. An hourly maintenance job on the server expires stale pending keys, alerts on unconfirmed releases, schedules due rotations, rewraps keys after a KEK change, and destroys keys past retention. Destroying a key is crypto-shredding: the ciphertext and wrapped data key are deleted.

• Retired keys stay revealable for 30 days by default (BOR_ESCROW_RETIRED_RETENTION_DAYS), because a disk restored from an older header backup needs its older key.
• Keys outlive node deletion. Deleting a node orphans its volumes instead of deleting their keys (the disk may still be in a drawer). Orphaned keys are destroyed after 90 days by default (BOR_ESCROW_ORPHAN_RETENTION_DAYS).

The Disk Encryption page

Fleet -> Disk Encryption (requires disk_encryption:view) lists every reported LUKS volume with its Node, Mount, Protectors and Recovery key state, and summary cards such as Volumes, Keys escrowed, Rotations pending, Unencrypted mounts, Clone suspects and Externally managed.

Compliance

All bound disk encryption policies on a node report the merged result. Items appear on the Compliance page:

Item	Non-compliant when	Inapplicable when
luks:encryption	A mount in scope is not encrypted, or is LUKS1	Encryption not required
luks:cipher	Cipher not allowed, or volume key below the minimum	-
luks:recovery	- (Compliant once a key is escrowed; Error when escrow fails, for example when escrow is not configured on the server)	- (not reported when escrow is off)
luks:tpm2	Enrollment missing, wrong PCRs, or stale and not re-sealed	No TPM (unless required); externally managed; non-dracut system
luks:tang	Binding missing or stale, or Clevis not installed	Tang off
luks:initramfs	Boot-time unlock support missing	No automatic protector; non-dracut system
luks:bootstrap	The provisioning slot still exists	No bootstrap key used
luks:adoption	No unlock credential available	-
platform:tpm2, platform:secureboot	Requirement not met	Not required

Error means the check or operation itself failed (unreadable header, enrollment failure, escrow not configured on the server) and carries the underlying message.

Tamper protection

In Manage (dracut) mode, /etc/dracut.conf.d/90-bor-disk-encryption.conf and /etc/crypttab are watched. An external edit is restored and recorded as a tamper_detected event in the audit log. The initramfs rebuild stays rate-limited, so a tamper loop cannot cause a rebuild storm. LUKS headers are not files; header changes are detected by the fingerprint comparison described above.

Unbind and delete

Unbinding or deleting the policy removes no protection. TPM2 and Tang enrollments, recovery keyslots and escrowed keys all stay. The agent only removes its dracut drop-in; the tpm2-device=auto crypttab options stay, because removing them could leave a TPM-only volume stuck at the boot prompt. The periodic re-check stops.

Verify on the endpoint

# Bor's view: platform facts, volumes and keyslots
sudo bor-agent luks status

# The LUKS header directly
sudo cryptsetup luksDump /dev/nvme0n1p3

# TPM2 and recovery enrollments
sudo systemd-cryptenroll /dev/nvme0n1p3

# Tang bindings
sudo clevis luks list -d /dev/nvme0n1p3

# Manage mode artifacts
cat /etc/dracut.conf.d/90-bor-disk-encryption.conf
grep tpm2-device /etc/crypttab

# Agent log
sudo journalctl -u bor-agent | grep -i -e "disk encryption" -e luks

bor-agent luks status prints the TPM, Secure Boot and initramfs facts, then each volume with its cipher, volume key size and keyslots (for example tpm2 (PCRs [7]), clevis (tang [...]), bor_recovery (escrow ...)). It never prints secrets.

Troubleshooting

Symptom	Cause and fix
Editor shows Recovery-key escrow is not configured on the server; luks:recovery is Error	Set BOR_ESCROW_KEK_FILE and restart; check the server log for KEK errors (permissions, size).
cryptsetup is not installed on this node	Install cryptsetup.
luks:adoption non-compliant	No usable credential. Run sudo bor-agent luks adopt once, or provision a bootstrap key.
luks:tpm2 inapplicable: TPM enrollment managed by ...	Another FDE stack owns the TPM. This is by design.
luks:tpm2 non-compliant after a firmware update	The PCRs changed and auto-reseal is off or already ran this boot. Enable Re-enroll automatically after PCR changes, or reboot.
luks:tang: clevis is not installed; install clevis-luks and clevis-dracut	Install them on the node.
luks:tang: only N bytes left in the LUKS2 metadata area	The header has no room for another token; it must be re-formatted with a larger metadata area.
luks:initramfs non-compliant in verify mode	The message names the missing piece (tpm2-tss dracut module, Clevis module, tpm2-device=auto crypttab option, rd.neednet=1). Fix it manually or switch to Manage (dracut).
initramfs rebuild rate-limited	A rebuild ran less than 10 minutes ago; the next sync retries.
Reveal is denied	Missing disk_encryption:reveal, wrong password or code, or MFA required but not enrolled.
A rotation stays pending	The node is offline or waiting at a boot prompt; the rotation runs on its next connect.
Tang server shows New key advertised	The Tang keys were rotated; confirm the new thumbprint against tang-show-keys.

Security considerations

• Server compromise does not unlock machines at boot. The server is not in the boot path; an attacker gains at most the escrowed recovery keys, and only with both the database and the KEK file.
• Rotating a keyslot is not revocation. Anyone who copied the LUKS header and knew an old key, or extracted the volume key from a running system, keeps access. True revocation requires re-encrypting the volume.
• Tang trusts the network. Combine it with network placement that matches where unattended unlocking is acceptable.
• Cloned images share a volume key. Bor detects and flags them; it cannot fix them.
• Forward the audit log. Recovery-key events (recoverykey.reveal, recoverykey.reveal_denied, recoverykey.escrow, recoverykey.confirm, recoverykey.release, recoverykey.release_unconfirmed, recoverykey.rotate_request, recoverykey.destroy) and luks.* events should be forwarded off the server for tamper evidence; see Audit log.
• Metrics: bor_luks_volumes_total, bor_luks_recovery_keys_overdue_total, bor_luks_escrow_operations_total and bor_luks_recovery_key_reveals_total (see Monitoring).
• Cryptography: recovery keys come from the kernel CSPRNG; escrow uses AES-256-GCM envelope encryption; volume encryption is whatever LUKS is configured with, and the compliance default demands aes-xts-plain64 with 512-bit keys.
